Brand: Hill House Products (San Clemente, California)

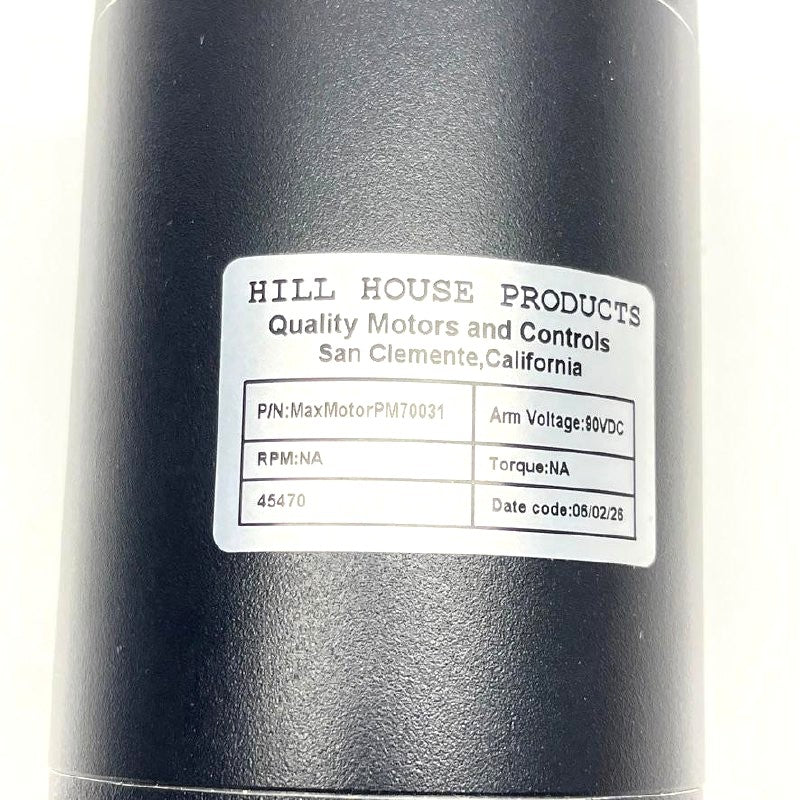

P/N on label: MaxMotor PM70031
Arm Voltage: 90VDC
Weight: 2.050 kg

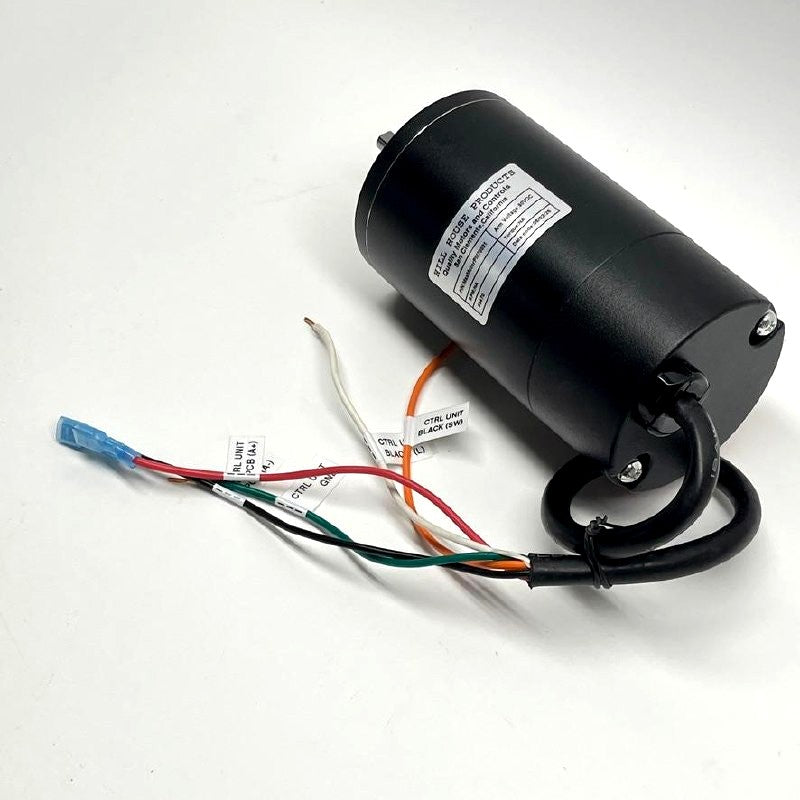

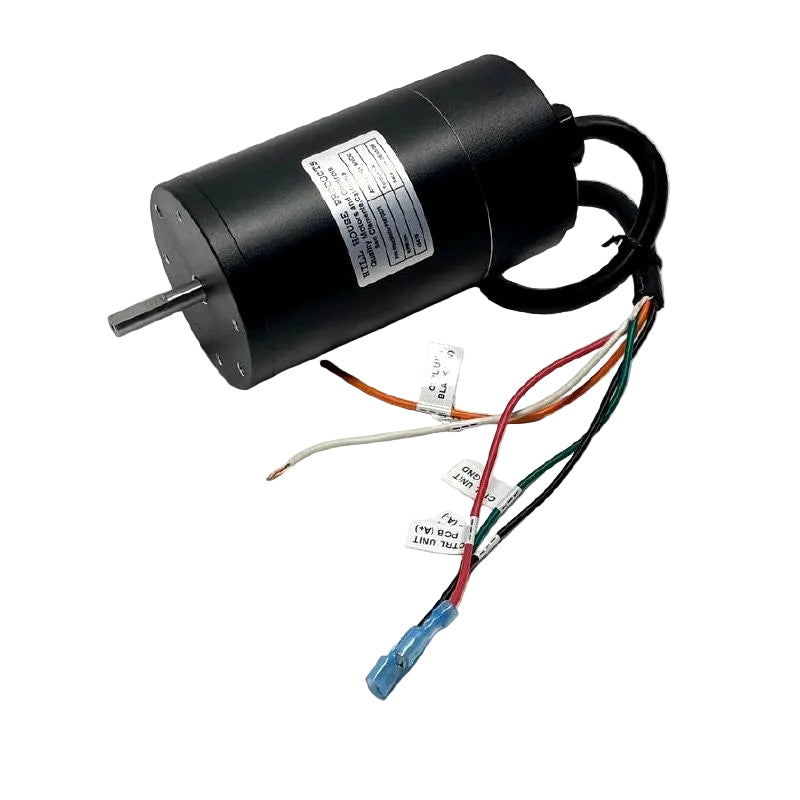

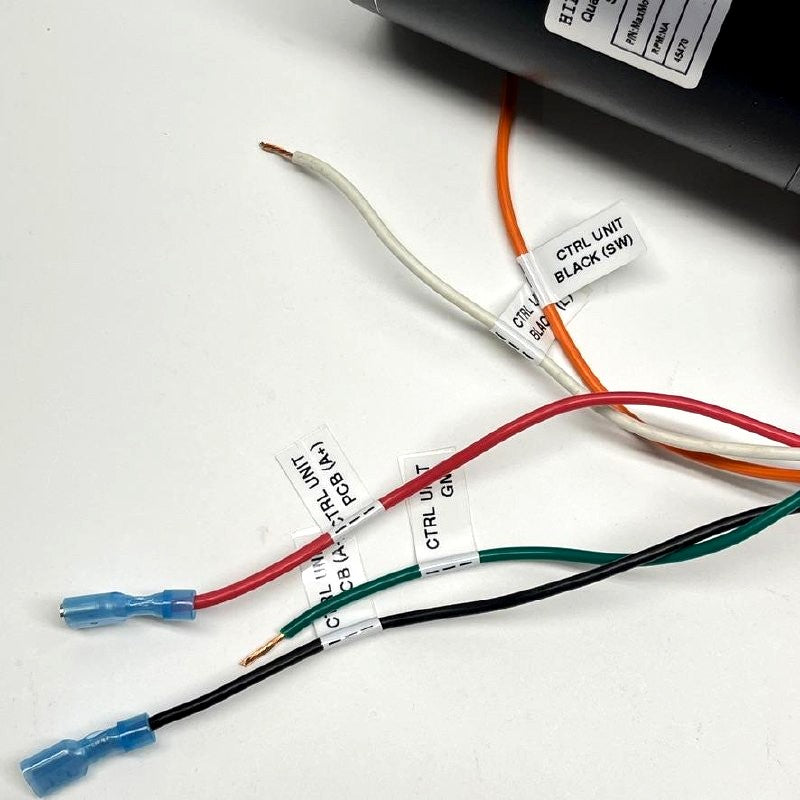

Wires labeled for control and power, includes connector ends
Electric Motor Specifications from Manufacturer
Type of enclosure: Totally enclosed, non-vented

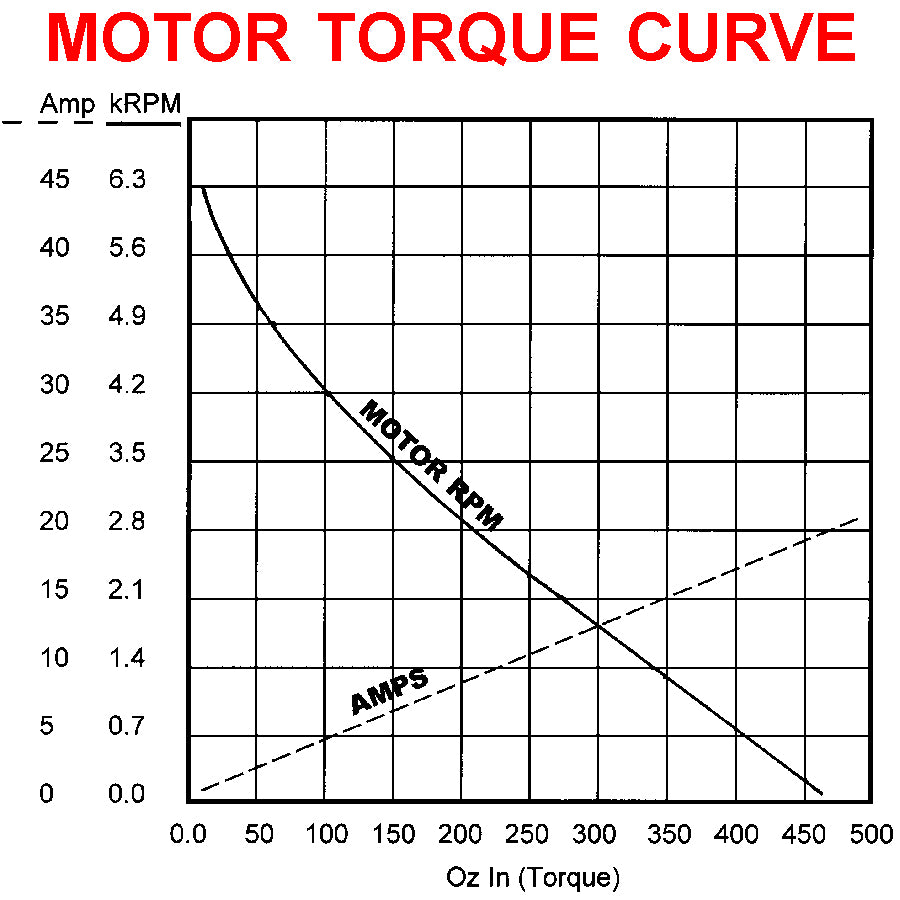

Duty rating: Continuous–10 oz. in. at 6100 rpm, .85 amperes; Intermittent–30 oz. in. at 5500 rpm, 1.75 amperes (5 minutes on / 15 minutes off)
Output horsepower: .06 KW (60 W) at 10 oz. in. / 6100 rpm
AC voltage (input): Normally 115 VAC, 60 Hz, Single Phase to a rectifier (Sherline electronic speed control converts any input from 100 VAC to 240 VAC, 50-60 Hz.)
DC voltage: 90V DC to motor (60 Hz)
Speed in rpm: 6100 rpm continuous
Class of insulation: Class A, 105° (C.) insulation system
Normal full load current: .85 amperes
Starting current: 1.7 amperes instantaneous starting current (<100 milliamperes). This is also the stall current in True RMS
Max current at time of changeover from lower speed to higher speed: Depends on load

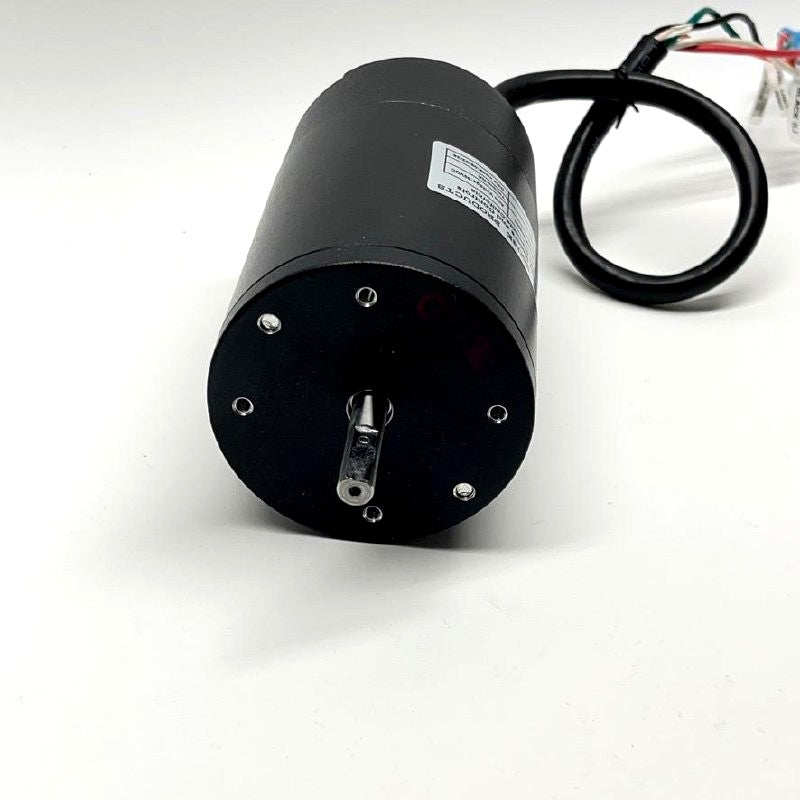

Type of motor: 3.00 inch (outer diameter) sub-fractional horsepower brush-type permanent magnet motor
Temperature rise at ambient 50° C.: Less than or equal to 45° C.
Motor frame size: 3 inches
Overall motor size: 3″ diameter x 5-1/4″ length with 5/16″ motor shaft
