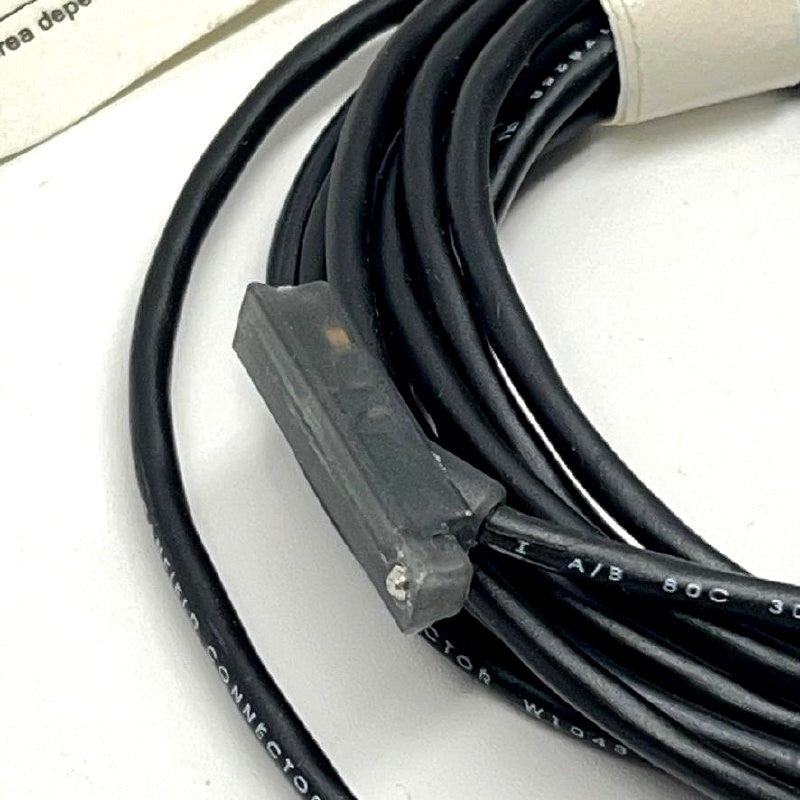

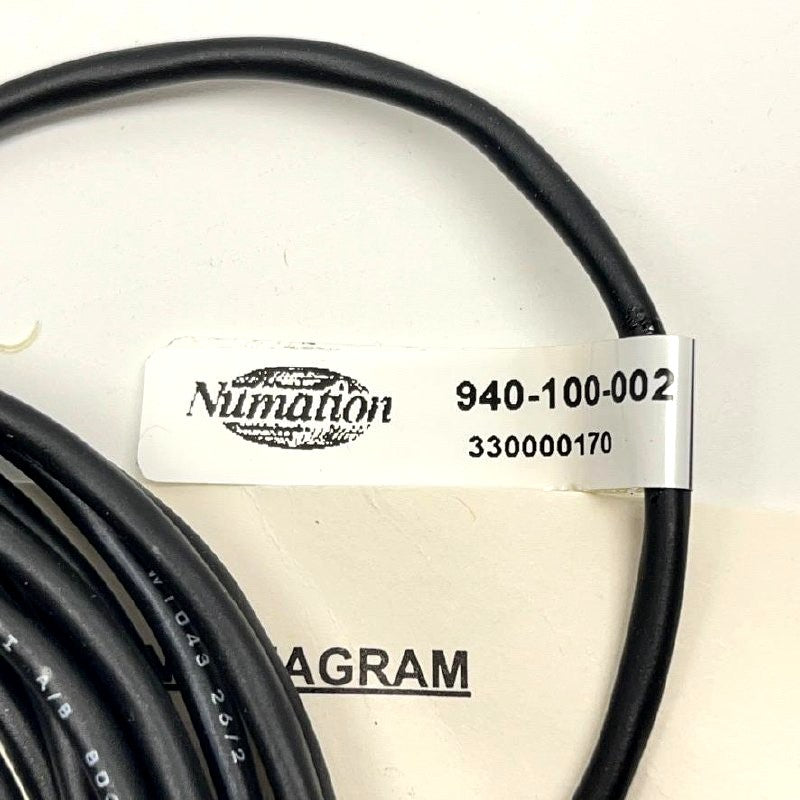

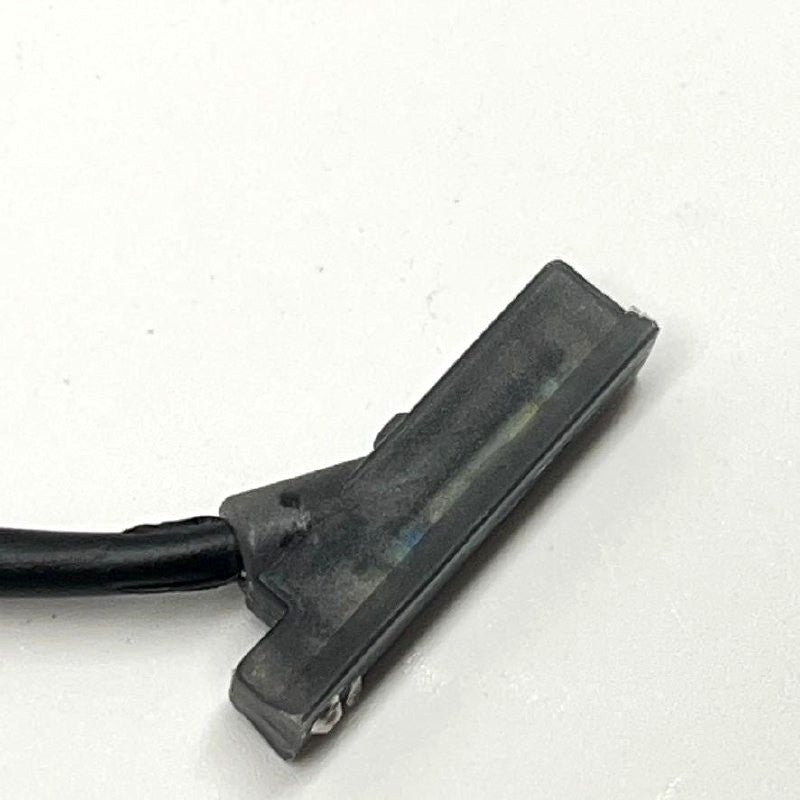

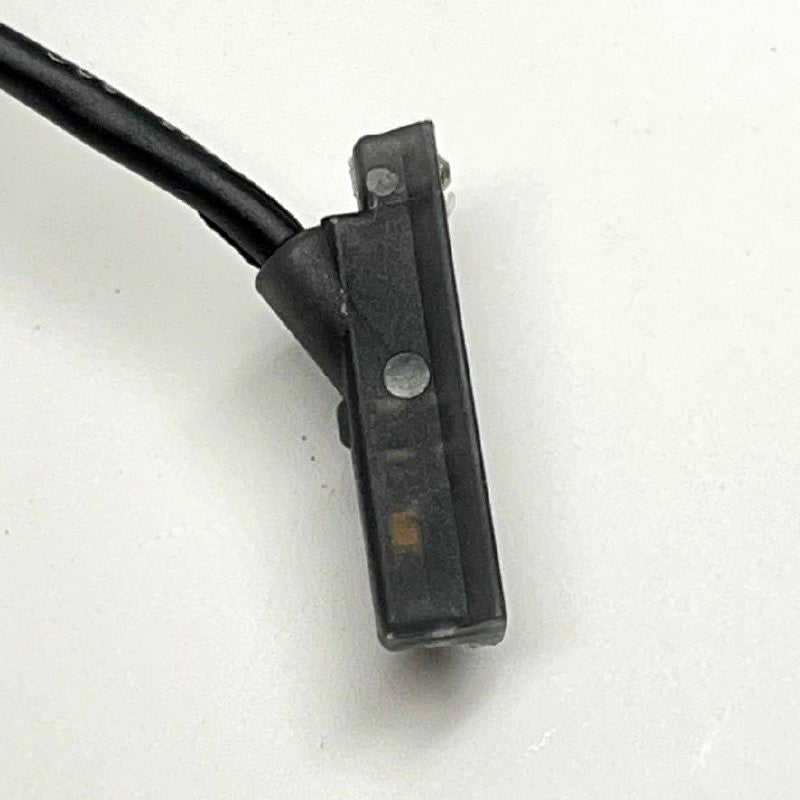

Nimation 940-100-002 Series 9000 Reed Switch Magnetic Sensor - 120V

• Type: Series 9000 Type 02 reed switch (magnetic sensor)

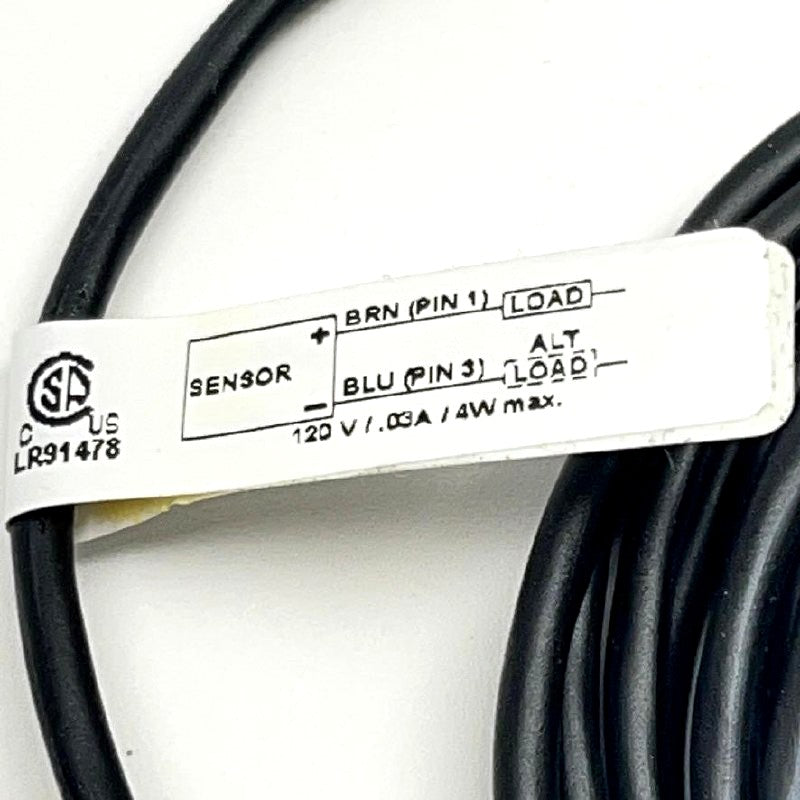

• Wiring: brown (PIN1) / blue (PIN3) per label; can be wired sinking or sourcing

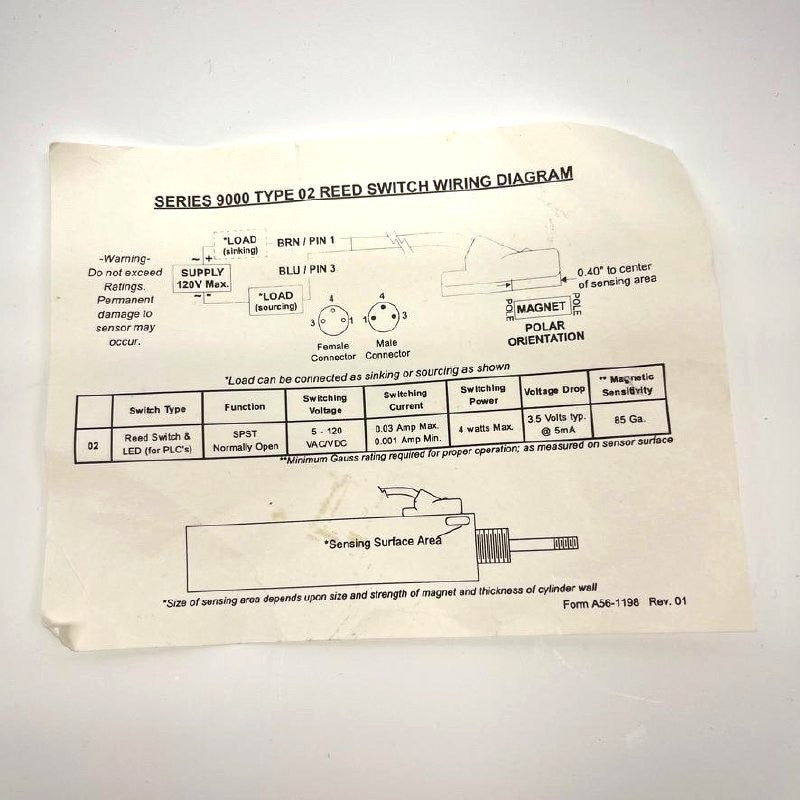

• Switch ratings from wiring diagram: switching voltage 5-120 VAC/VDC, switching current 0.03 A max, switching power 4 W max

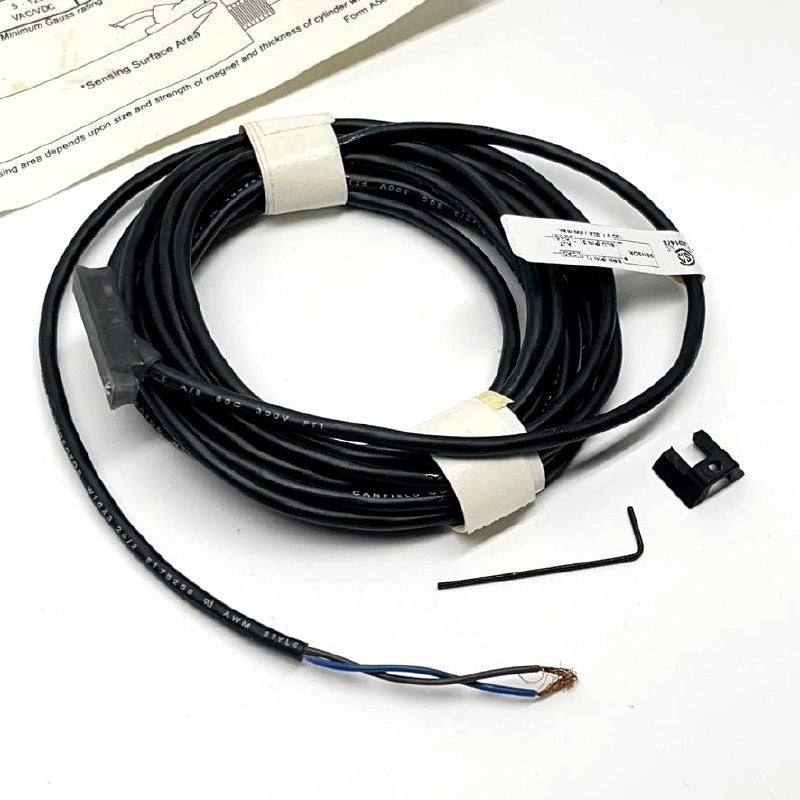

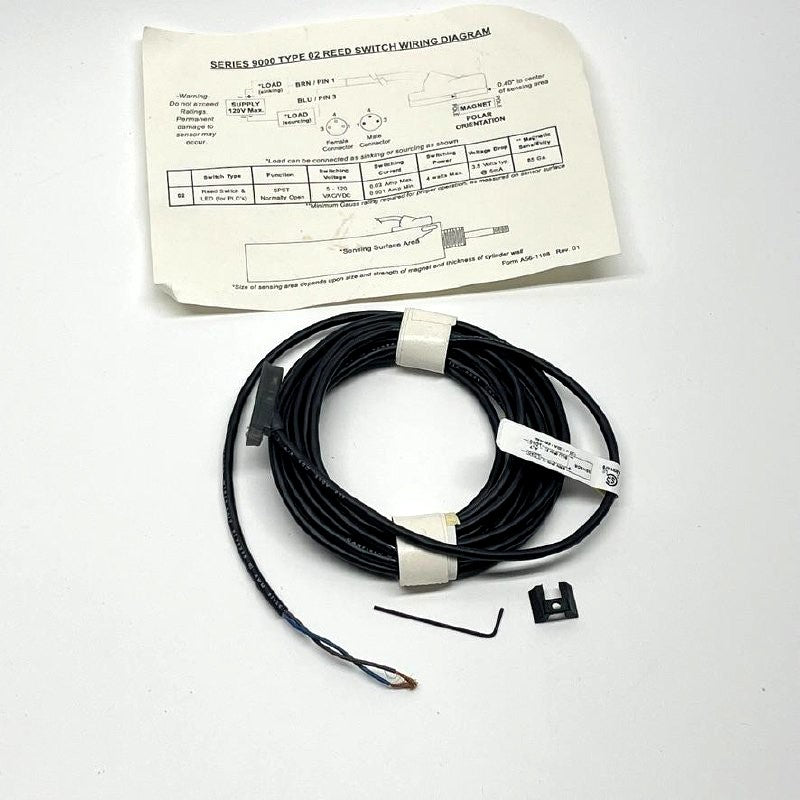

• Includes wiring diagram, mounting clip and small hex key (see photos)
• Condition: used (good)

• SKU: AP00158
• MPN: 940-100-002
• Condition: New
• Dimensions: 3.15 × 3.15 × 0.39 in (80 × 80 × 10 mm)
• Weight: 0.09 lb (0.039 kg)

Please check detailed photos. What you see is what you get.
